From Components to Finished PCBA: Inside Our SMT Assembly Process

Shenzhen Yifang Electronics provides PCB manufacturing, component sourcing and PCBA assembly services. Customers can manage the complete process through one point of contact, from bare PCB production to finished board assembly.

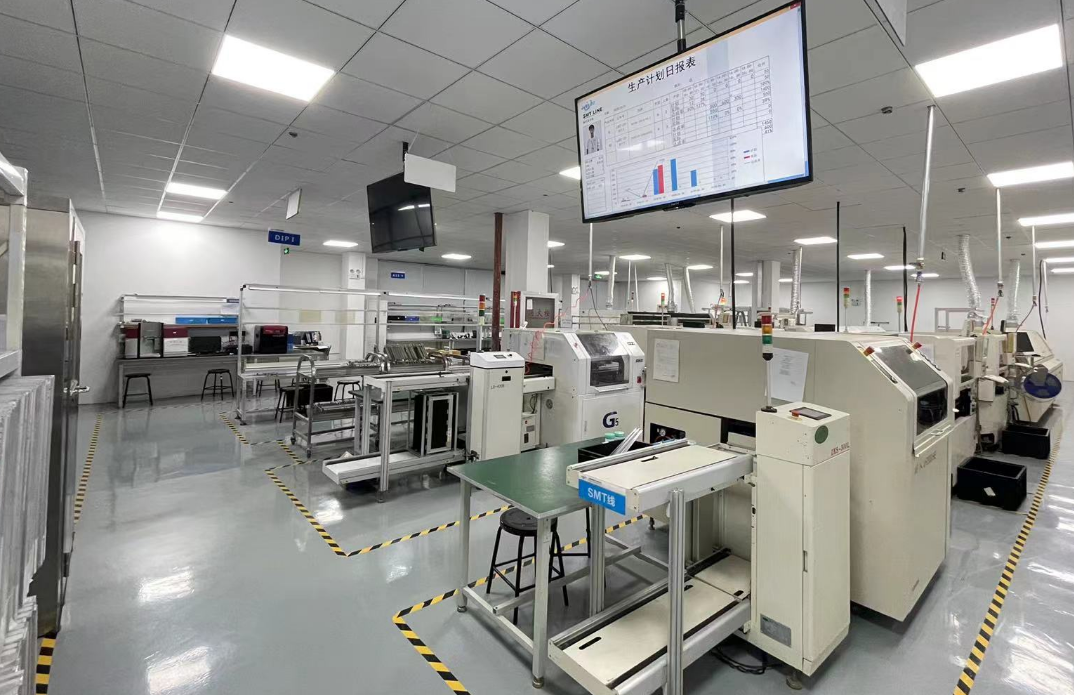

Our SMT production environment for prototype and volume PCBA assembly.

Component Sourcing and Material Control

Components are purchased according to the approved BOM. Before purchasing, we confirm the part number, manufacturer, package type and any acceptable alternatives with the customer.

Incoming materials are checked and managed by batch before being released to production. Sensitive components are stored and handled according to their specific requirements.

Automated SMT Assembly

The SMT assembly process begins with automatic board loading and solder paste printing. Components are then placed onto the PCB using automated pick-and-place equipment.

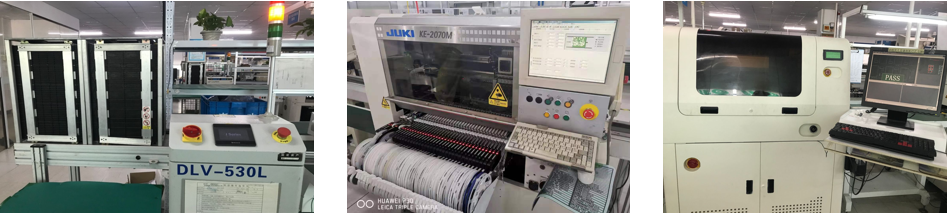

Automatic board loading, solder paste printing and high-speed component placement.

Our SMT assembly resources can support small components, fine-pitch ICs, BGA packages, FPC assembly and both prototype and volume production.

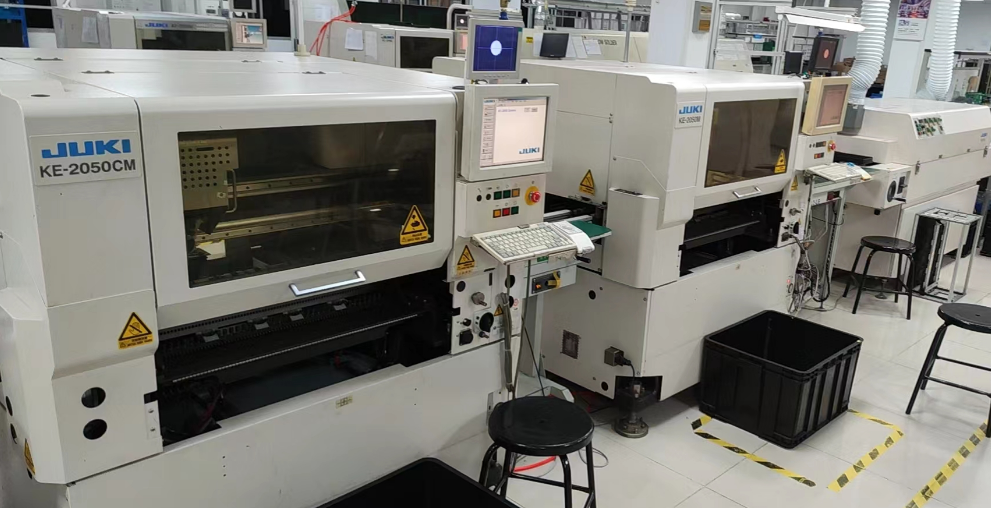

Automated SMT placement equipment for consistent assembly quality.

Reflow Soldering

After component placement, the boards pass through the reflow soldering process. The temperature profile is adjusted according to the solder paste, PCB material and component requirements.

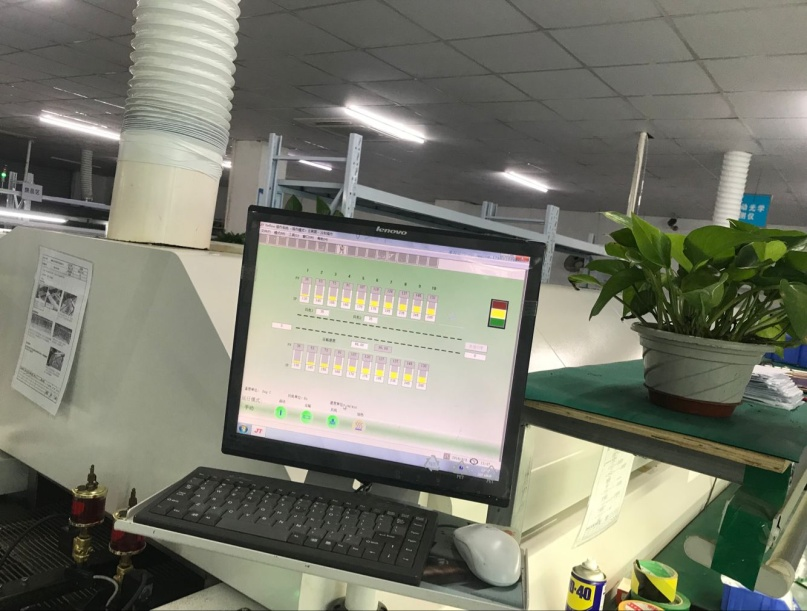

Reflow soldering process monitoring and temperature control.

AOI Inspection

After reflow soldering, AOI is used to inspect the assembled boards. It can help identify missing components, incorrect polarity, placement deviation and visible soldering defects.

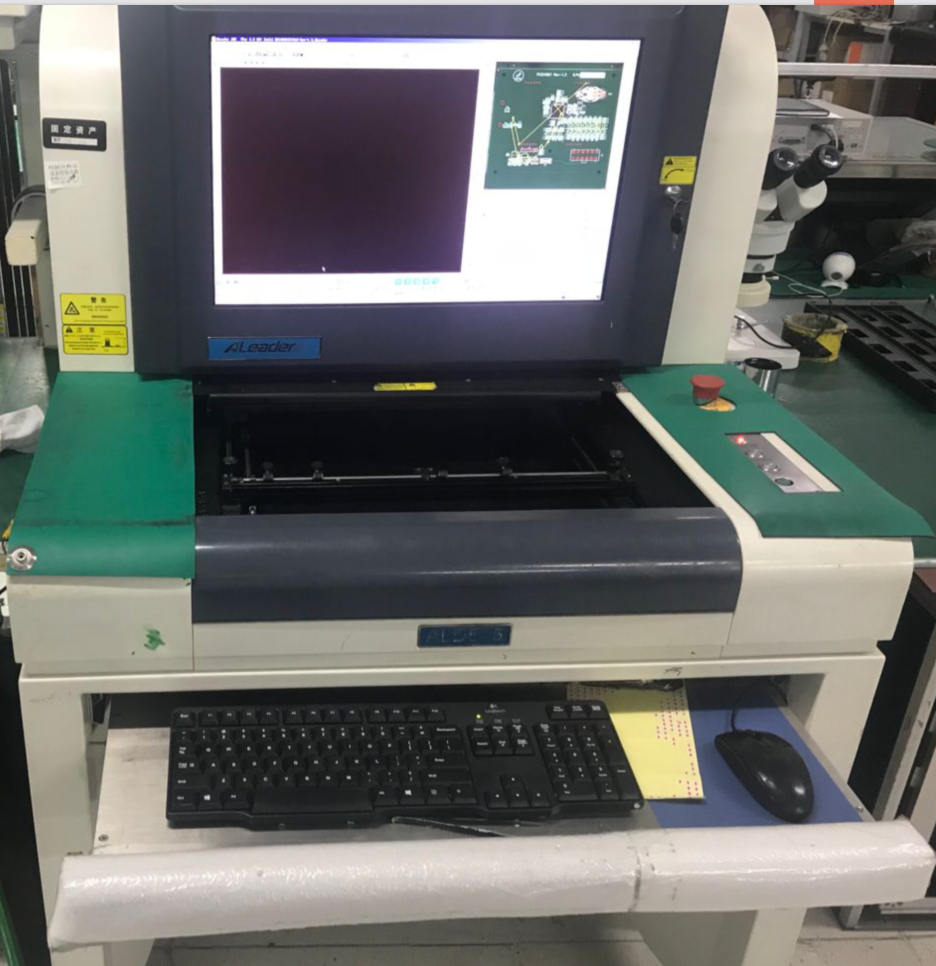

Automated optical inspection after SMT assembly.

For BGA, QFN and other packages with hidden solder joints, X-ray inspection can also be arranged according to the project requirements.

DIP and Through-Hole Assembly

For boards containing through-hole components, we support manual insertion, wave soldering and post-soldering inspection.

Through-hole component insertion and wave soldering.

Additional operations such as manual soldering, programming, conformal coating and final assembly can also be included when required.

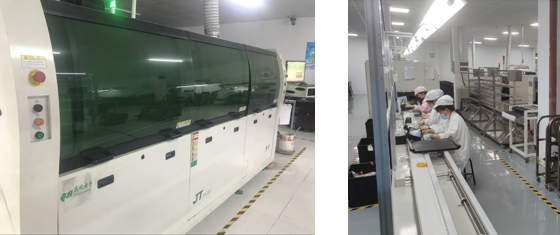

Wave soldering and post-assembly processing area.

Final Inspection and Testing

Depending on the product requirements, assembled boards can undergo electrical testing, programming and functional testing before shipment.

Testing requirements should be confirmed before production so that the necessary fixtures, programs and procedures can be prepared in advance.

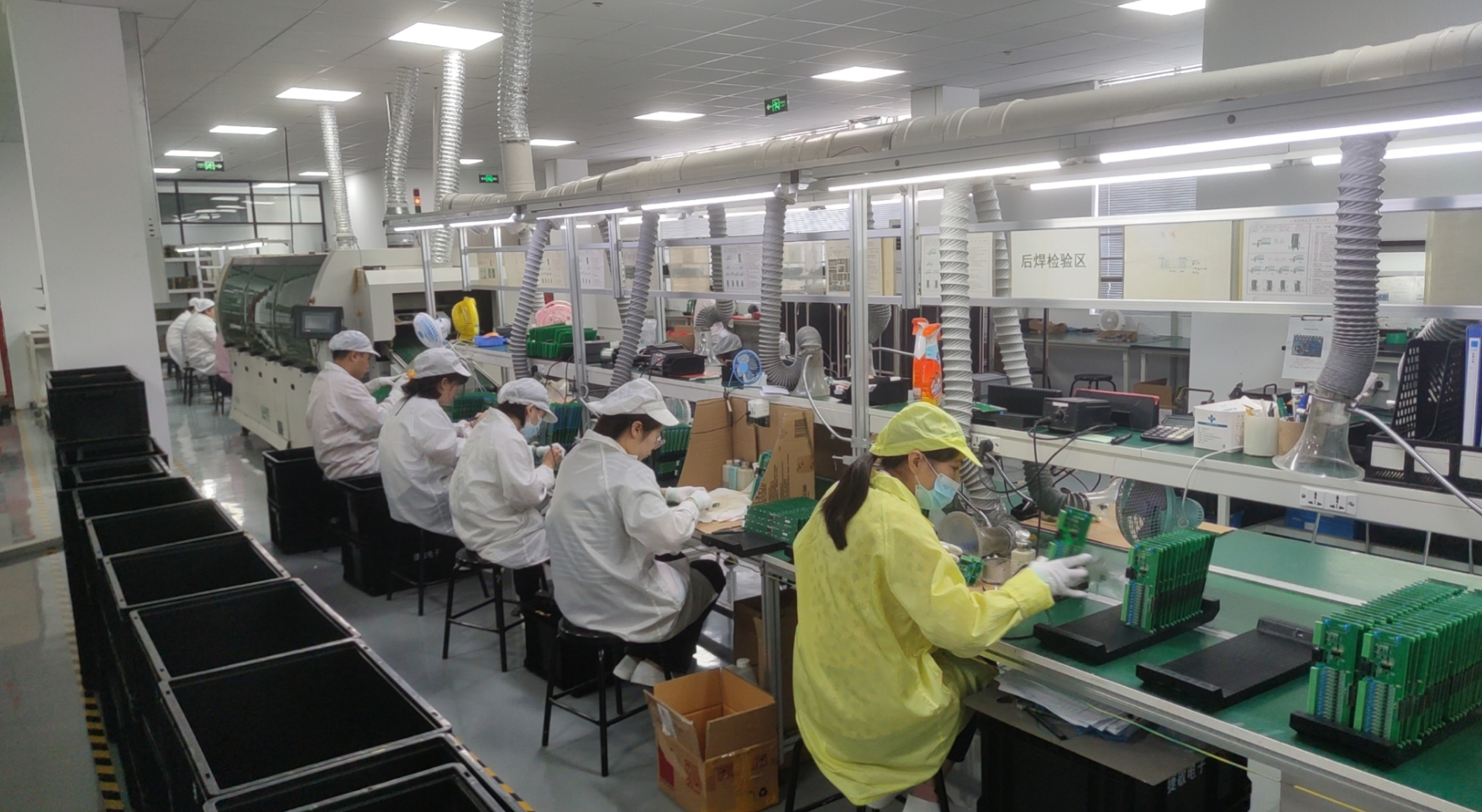

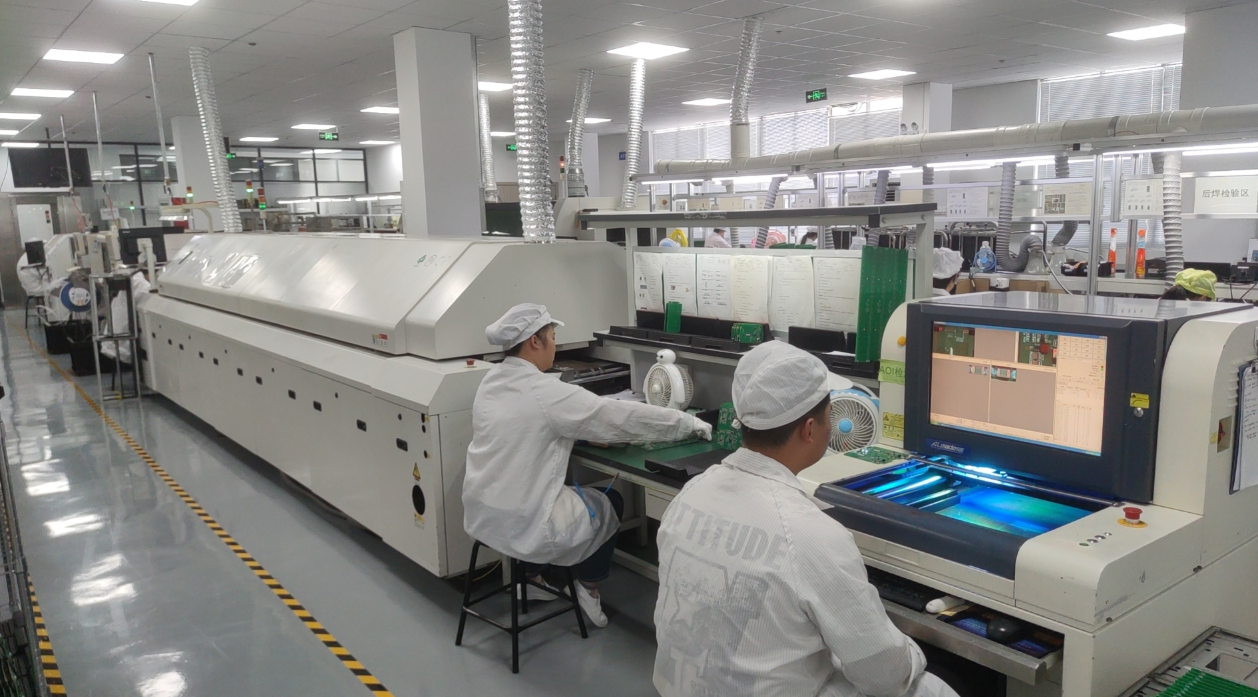

PCBA production and inspection during the assembly process.

One-Stop PCB and PCBA Support

By combining PCB manufacturing, component sourcing and assembly support, customers can reduce communication between multiple suppliers and manage production more efficiently.

To receive a quotation, please send us:

Gerber files
BOM
Pick and Place files
Required quantity
Testing or programming requirements
Expected delivery date

Our engineering team will review the files and contact you if any technical details need to be confirmed.
